Nirmay make Clamp On Type Ultrasonic Flow meter is designed for Measuring Flow of any size of Flow lie without disturbing the Process. The Handheld Instruments (Battery Operated) supplied with various types
of Sensors for Different line sizes.

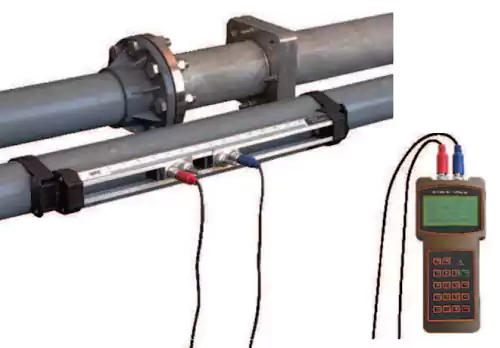

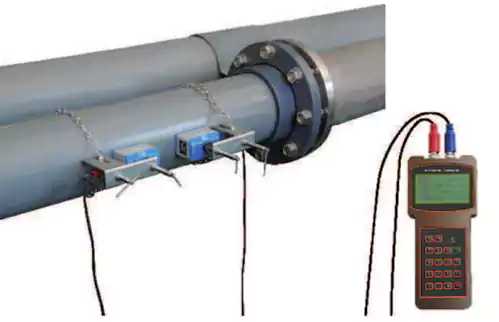

Clamp on transducer :
Easy to install and no need to cut off the flow, no pressure loss
Different transducer from DN25-DN6000
Different transducer for temperature -30~16O oc
Reduces installation time, improve installation accuracy Easy installation, no need cut the flow, no pressure loss
Easy to install and no need to cut off the flow, no pressure loss
Different transducer from DN25-DN700
Different transducer for temperature -30~16O oc
Product Introdcution :

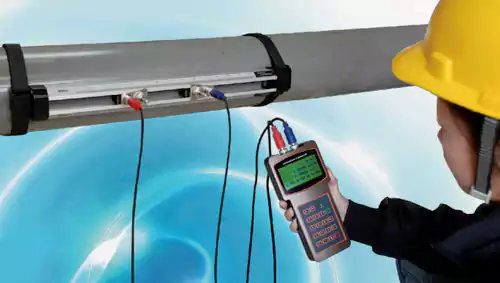

The handheld ultrasonic flow meter is designed to work with clamp-on transducers to enable the flow of a liquid within a closed pipe to be measured accurately without needing to insert any mechanical parts through the pipe wall or protrude into the flow system.
Using ultrasonic transit time techniques, the PHILEMON-H is controlled by a micro-processor system which contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15mm up to 6000mm (depending on model) and constructed of almost any material. The instrument will also operate over a wide range of fluid temperatures.

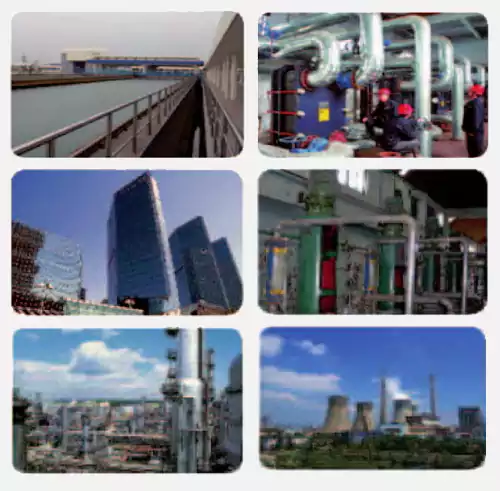

Applications :
Water Supply
Supply Heating
Bulding Energy Conservation
Metallurgy
Petroleum & Chemicals
Power Plants
| FEATURES OF Handheld ULTRASONIC FLOW METERS | |||
| High Accuracy | Accuracy better than 1% | ||
| Wide Measurement Range | Measurement range from DN25-DN1000mm | ||
| Rechargeable Power Supply | Built-in high-capacity NiMH rechargeable batteries can work 20 hours (Fully charged) | ||
| Non invasion measurement | Can achieve measurement with clamp on sensors | ||
| Data Storage | 32K BIT built-in data storage, can store two thousand rows of data | ||
| LCD display | LCD dispaly can display the instant flow, totoal flow, flow velocity and working condition | ||
