Nirmay make Manometers are designed taking industrial applications into focus. A strong body with a sturdy construction makes it ideal for use for a long term.

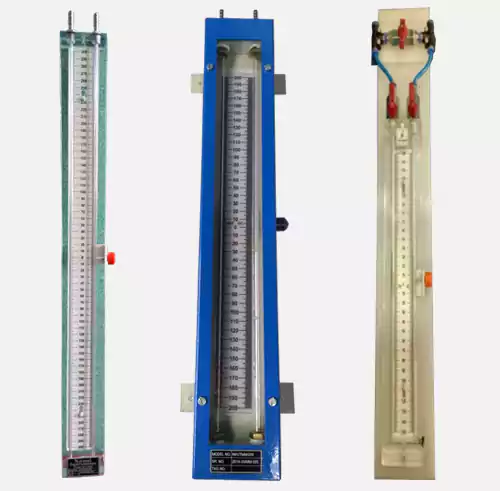

Nirmay make manometers are 'U' shaped tubes, half filled with suitable liquid (Water / Mercury / Coloured Liquid). When both the tubes are open, the liquid is at the same level (Zero) in each leg. When positive pressure is applied to one leg, the liquid is forced down in that leg and up in the other. The difference in height, which is the sum of the reading above and below zero, tells you the pressure. A manometer forms a very essential part in the measurement of differential pressure with a high accuracy and resolution of measurement.
Glass Tube Manometer :
Glass Tube manometer consists of two glass limbs. It is provided with Aluminum fittings mounted on a metallic frame provided with white acrylic scale with a '0' (zero) marking at the center. The manometers are protected by a transparent cover fixed with the help of metallic frame. An external '0' adjustment knob is provided.
Available Ranges :
50-0-50, 100-0-100, 150-0-150, 200-0-200, 250-0-250, 300-0-300, 350-0-350, 400-0-400, 500-0-500, 600-0-600, 750-0-750 ranges with units of mmWC or mmHg.
Acrylic Body Manometers :
Acrylic body manometer are fabricated from solid acrylic block, unbreakable, stable and free from distortion. Acrylic scale, zero adjustment knob, drain plug and panel mounting holes are provided
with the manometer.
Available Ranges :
50-0-50, 100-0-100, 150-0-150, 200-0-200, 250-0-250, 300-0-300 ranges with units of mmWC.
