Thermowell

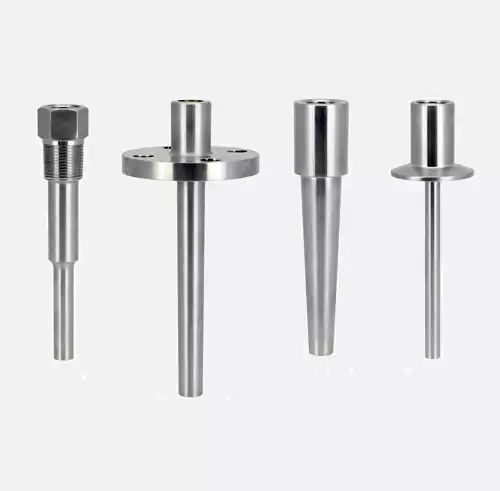

Nirmay Thermowell are designed taking industrial applications into focus. A strong body with a sturdy construction makes it ideal for use for a long term
| STANDARD THERMOWELL TECHNICAL SPECIFICATIONS | |||||
| - | SCREWED | FLANGED | NOTES | ||
| Bore | 6.5mm | 6.5mm | Other as specified | ||
| Instrument Connection | 1/2"NPSM or 1/2"BSPP | 1/2"NPSM or 1/2"BSPP | Other as specified | ||
| Process Connection | BSPT or NP | - | Other as specified | ||
| Standard Head Length | 44mm | 50mm | Other as specified | ||
| Standard Major / Minor OD for Tapered Wells | 1/2" Taper, 16/12mm 3/4" Taper, 22/16mm 1" Taper, 27/16mm |
25NB Taper, 22/16mm 40NB Taper, 22/16mm 50NB Taper, 22/16mm |
- | ||
| Standard OD for Parallel Wells | 1/2" Parallel, 16 mm 3/4" Parallel, 19mm 1" Parallel, 22mm |
25NB Parallel, 20mm 40NB Parallel, 20mm 50NB Parallel, 20mm |
- | ||
| Step Length / OD | 64/12.7mm | 64/12.7mm | - | ||

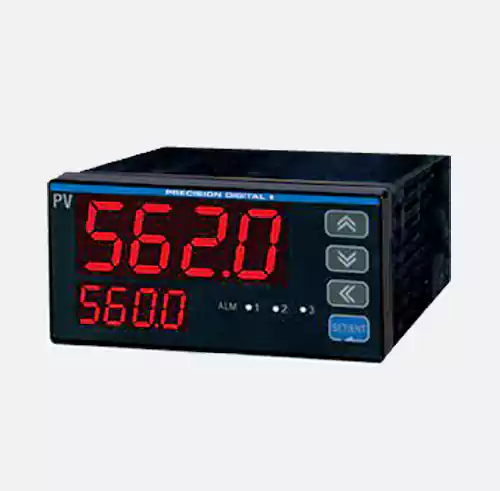

Digital Process Indicator with TC / RTD Input
4 digit single display simple temperature indicator
(TC: J, K, T, R, S / RTD : PT100) sensor input
48 mm x 96 mm size
Panel mount
230V AC supply voltage
| INDICATORS TECHNICAL SPECIFICATIONS | |||||
| Display Type | 7 Segment LED, Single Display | ||||
| Display Configuration | 4 digits | ||||
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) | ||||
| Resolution | 1/0.1° | ||||
| Accuracy | TC: ± 0.25% of F.S ± 1º R & S TC: ± 0.5% of F.S. ± 2 (20min of warm up time) RTD: ± 0.1% of F.S. ± 1º | ||||
| Supply Voltage | 230V AC, ±20% | ||||
| Size | 48 x 96mm | ||||
| Mounting Type | Panel Mount | ||||
